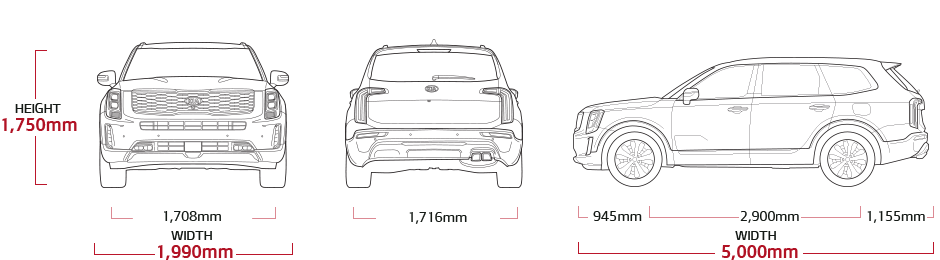

DIMENSIONS(mm)
skip_entry
| Overall length |
|---|
| Overall width |
| Overall height |
| Wheelbase |
| Overhang (F/R) |
| Head room (1st) |
| Head room (2nd) |
| Head room (3rd) |
| Leg room (1st) |
| Leg room (2nd) |
| Leg room (3rd) |
| Shoulder room (1st) |
| Shoulder room (2nd) |
| Shoulder room (3rd) |
| Fuel tank (ℓ) |
| Suspension (F/R) |
|
Overall length
5,000
|
|
Overall width
1,990
|
|
Overall height
1,750
|
|
Wheelbase
2,900
|
|
Overhang (F/R)
945 / 1,155
|
|
Head room (1st)
1,042
|
|
Head room (2nd)
1,022
|
|
Head room (3rd)
969
|
|
Leg room (1st)
1,052 (MAX : 1,120)
|
|
Leg room (2nd)
1,077
|
|
Leg room (3rd)
798
|
|
Shoulder room (1st)
1,565
|
|
Shoulder room (2nd)
1,556
|
|
Shoulder room (3rd)
1,404
|
|
Fuel tank (ℓ)
71
|
|
Suspension (F/R)
McPherson Strut / Multi-link
|
