Features

Dimensions

DIMENSIONS(mm)
table fix area
Overall length
Overall width
Overall height
Wheelbase
Wheel tread (front/rear)
Overhang (front/rear)
Leg room (front/rear)
Head room (front/rear)
Shoulder room (front/rear)
Min. ground clearance
4,315
1,800
1,620
2,610
1,572 / 1,595
865 / 840
1,051 / 973
1,015 / 980
1,409 / 1,395
190

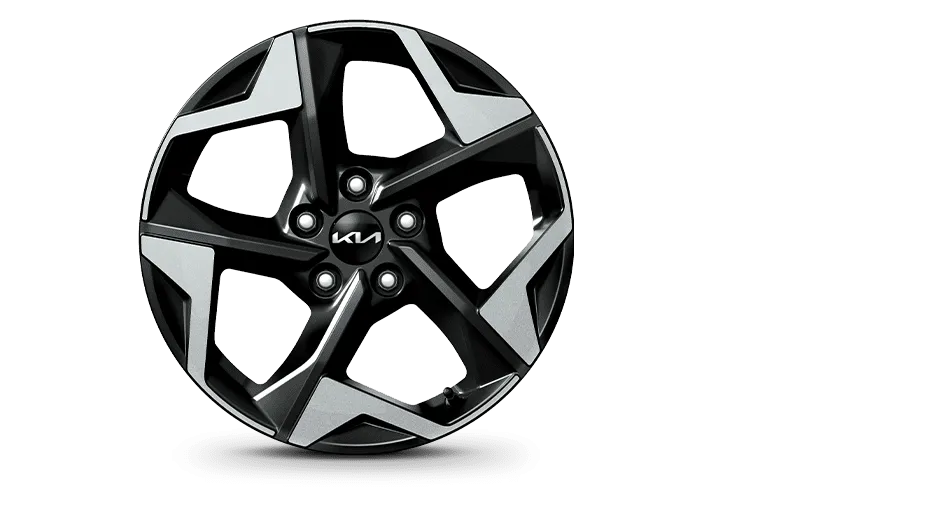

Wheel

Next

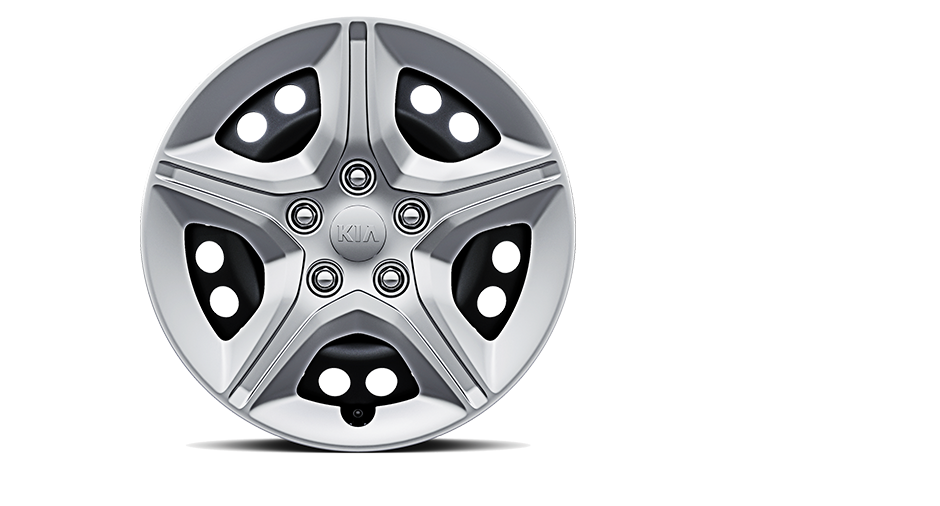

  • 16-inch 205/65R16 Steel wheel

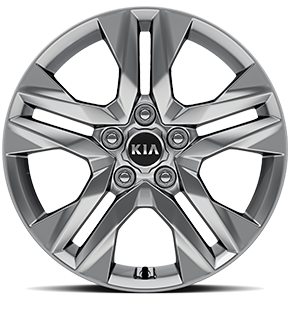

  • 16-inch 205/65R16 Alloy wheel

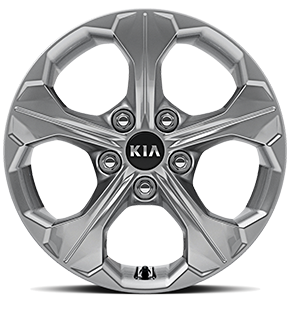

  • 17-inch 215/60R17 Alloy wheel (A type)

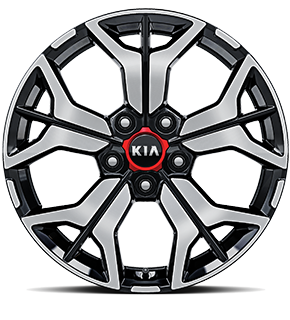

  • 17-inch 215/60R17 Alloy wheel (B type)
